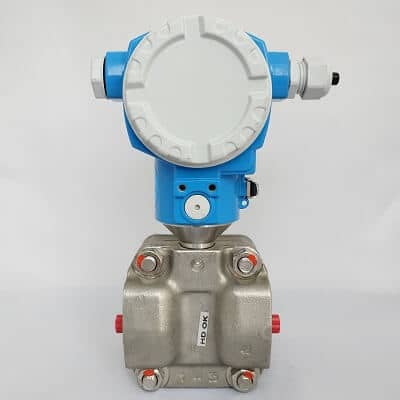

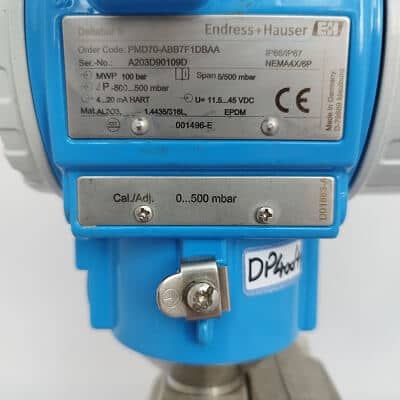

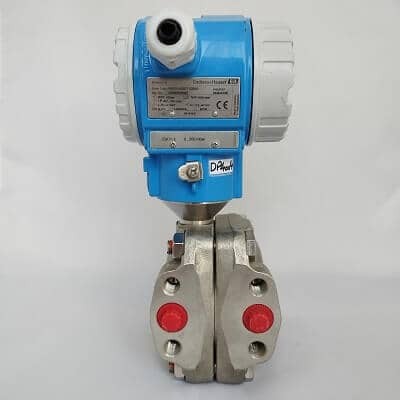

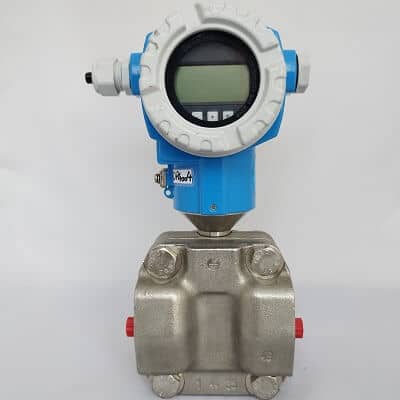

ترانسمیتر اختلاف فشار Deltabar S PMD70 PMD70-ABB7F1DBAAرنج 500میلی بار

A06PLM

مشخصات کالا:

وضعیت: نو با کارتن

موجودی : یک

ویژگی محصول:

Approval:         A             Non-hazardous area

Output; Operating:           B          4-20mA HART; inside + LCD

Housing; Cover Sealing; Cable Entry:       B          T14 Alu IP66/67 NEMA6P; EPDM; G1/2 thread, T14 = side cover

Nominal Range; PN:                  7F          500mbar/50kPa/7.5psi; 100bar/10MPa/1500psi

Calibration; Unit:                         1               Nominal range; mbar/bar

Process Connection:             D                NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L

Seal:                               B                EPDM

Additional Option 1:          A            Not selected

Additional Option 2:            A            Not selecte
