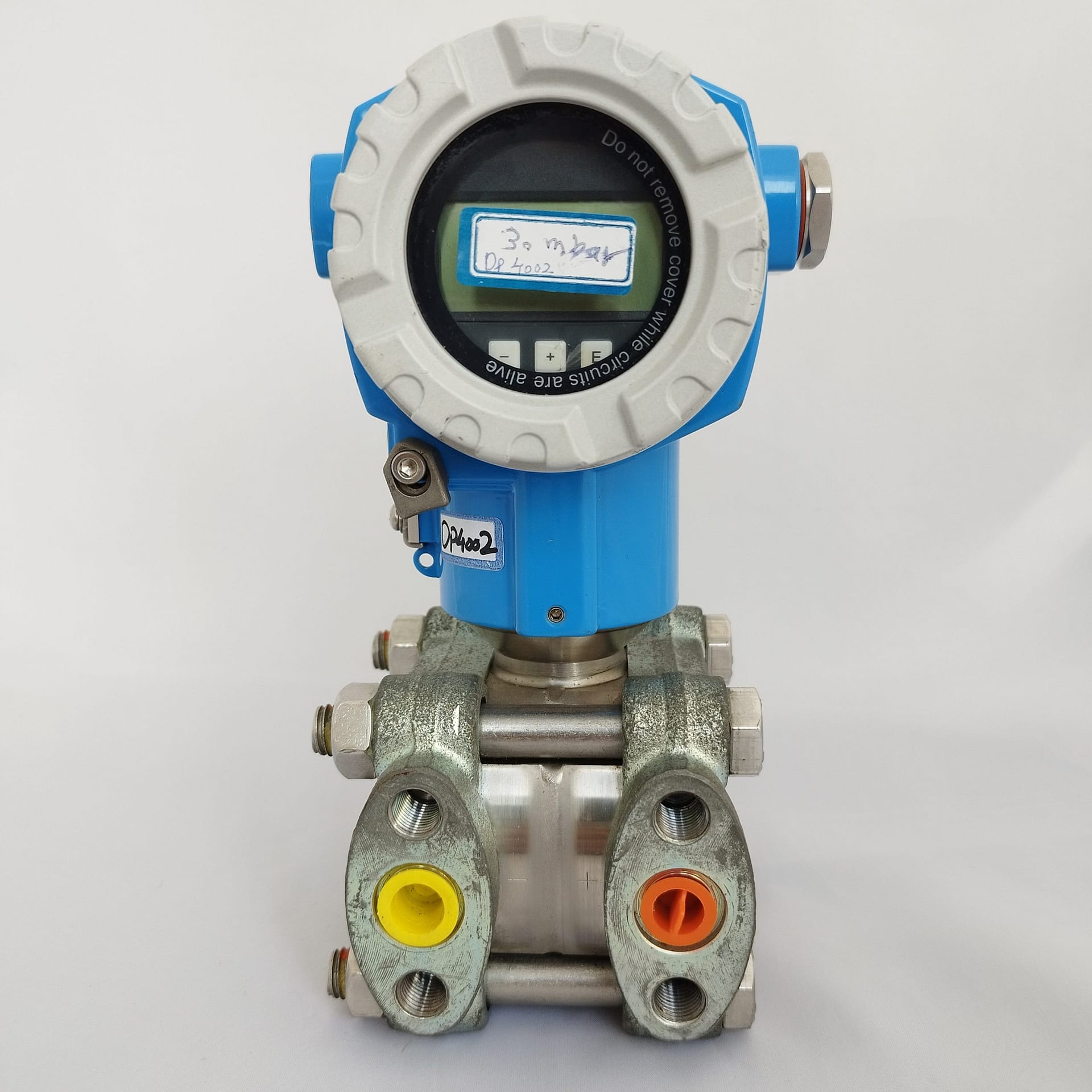

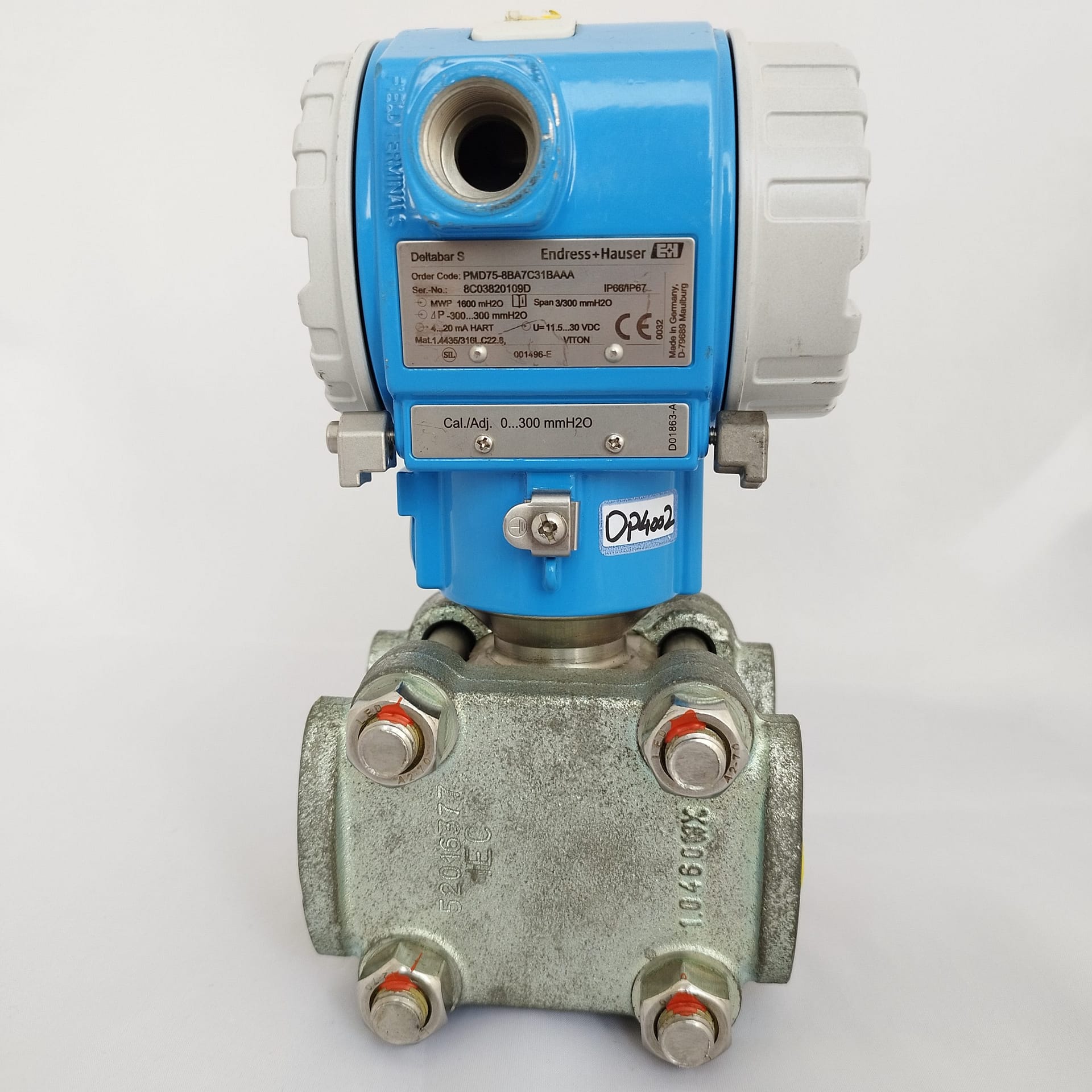

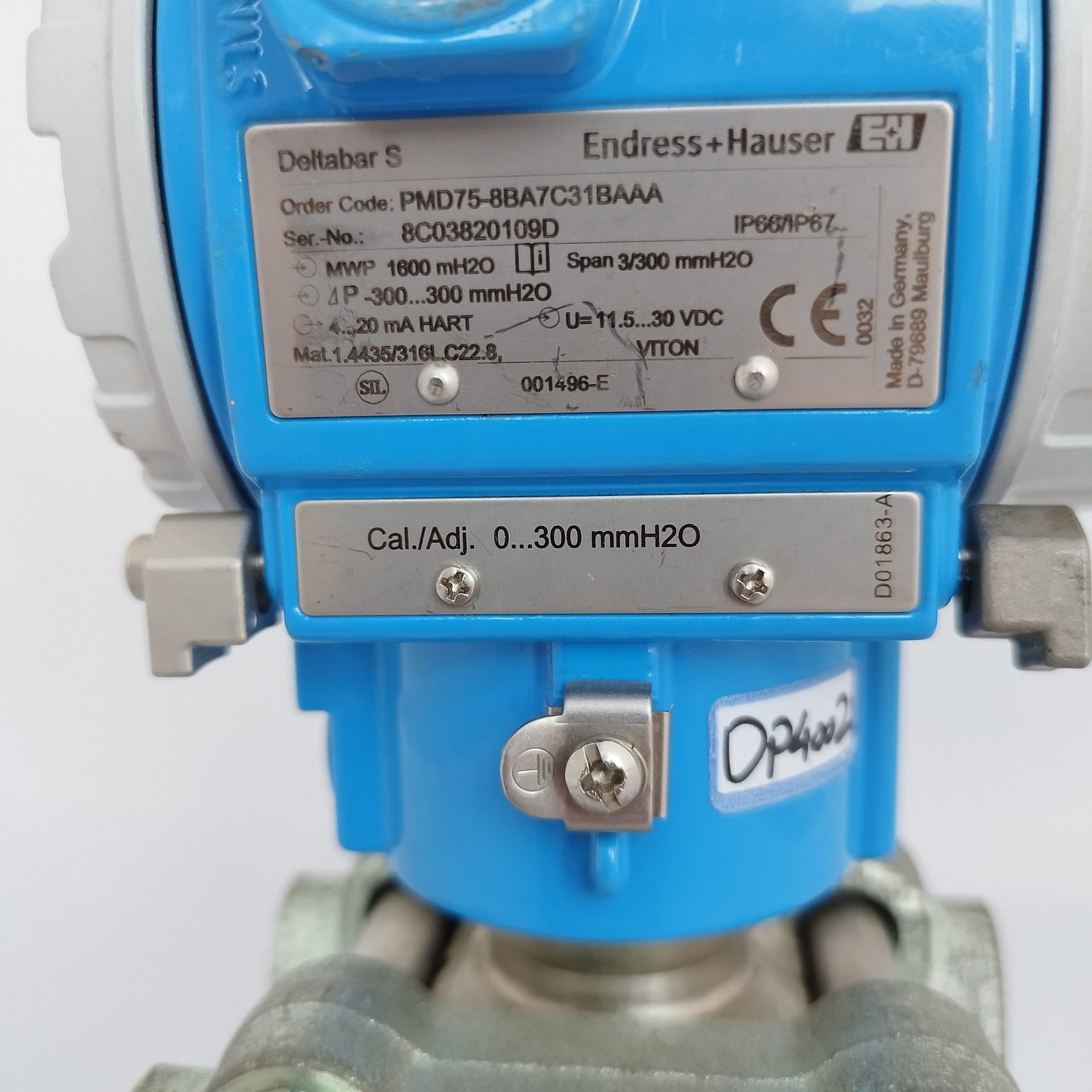

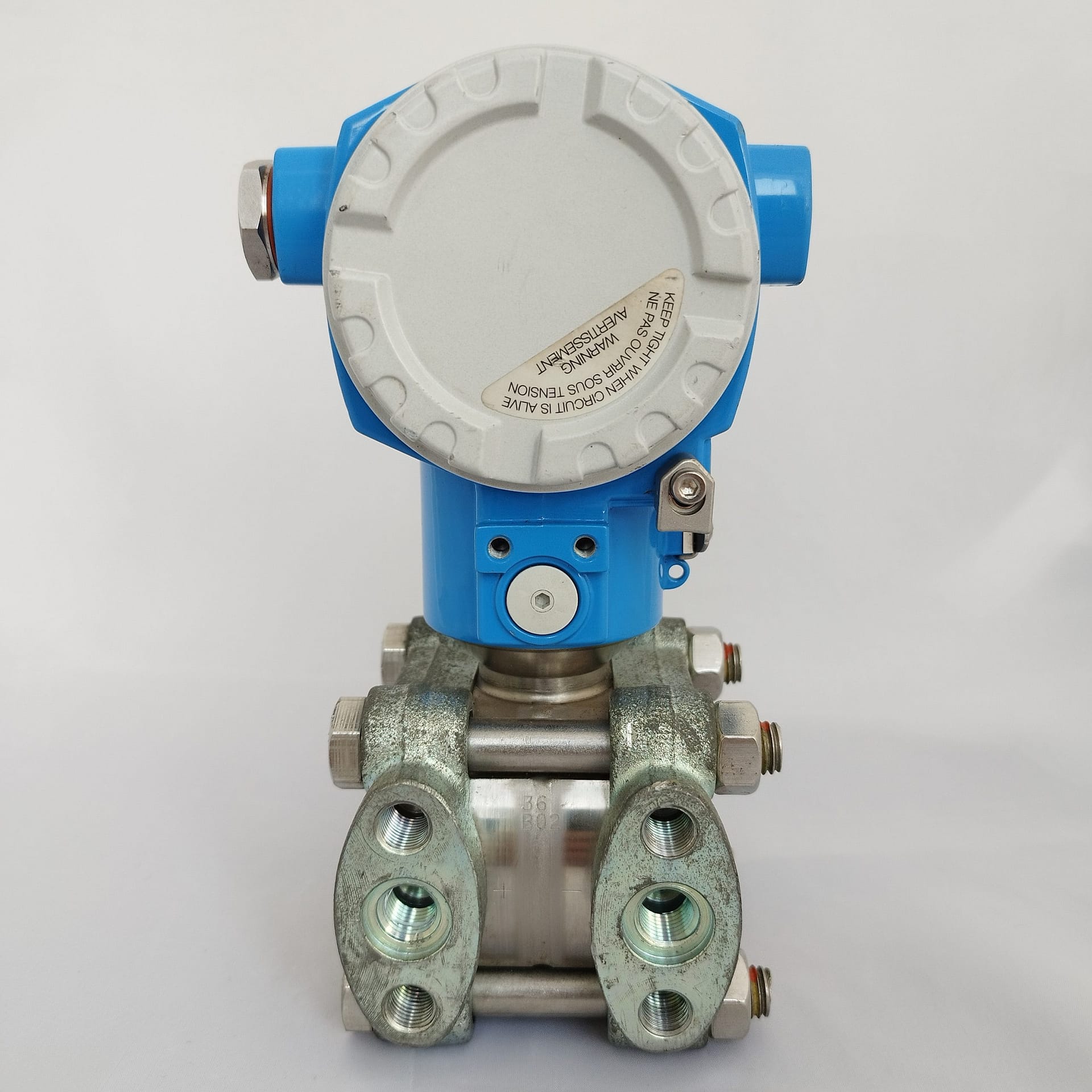

ترانسمیتر اختلاف فشار سری Deltabar S PMD75 رنج 40 بار

A08PLM

وضعیت:  نو باکارتن

تعداد:یک

مشخصات:

Approval:       T            FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2

Output; Operating:       B         4-20mA HART; inside + LCD

Housing; Cover Sealing; Cable Entry:  C        T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side                 cover

Nominal Range; Cell Material; PN:           3M        ***40bar/4MPa/600psi; 316L; 420bar/ 42MPa/6300psi, cell body 316L

Calibration; Unit:         1           Nominal range; mbar/bar

Membrane Material:        1          316L

Process Connection:         Y        Special version, TSP-no. to be spec

Seal:           A        FKM Viton

Additional Option 1:          M         Overvoltage protection

Additional Option 2:           A          Not selected
