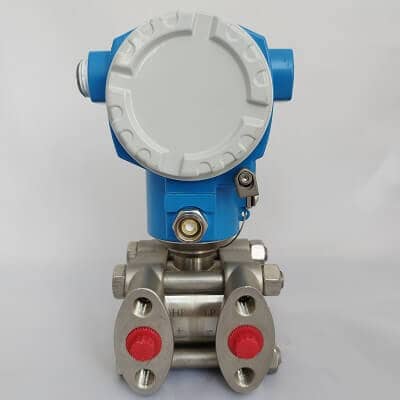

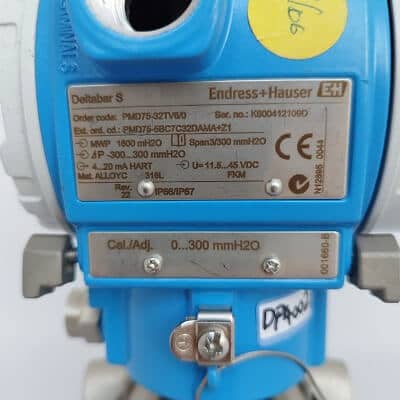

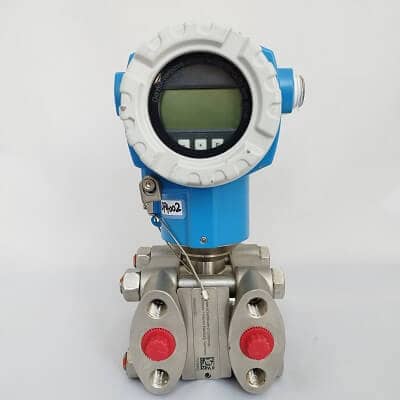

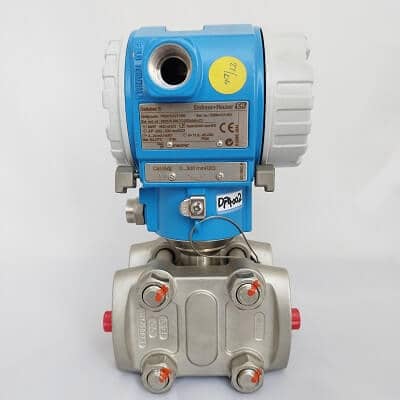

ترانسمیتر اختلاف فشار سری Deltabar S PMD75 کمپانی E&H رنج ۳۰۰میلی بار H20

A07PLM

وضعیت: نو با  کارتن

تعداد: 1

مشخصات:

Approval:            5           ATEX II 2G Ex db IIC T6 Gb

Output; Operating:       B         4-20mA HART; inside + LCD

Housing; Cover Sealing; Cable Entry:      C          T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover

Nominal Range; Cell Material; PN:           7C       30mbar/3kPa/0.45psi; 316L; 160bar/ 16MPa/2400psi

Calibration; Unit:                 3              Nominal range; mm/mH2O

Membrane Material:           2              AlloyC276

Process Connection:             D             NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L

Seal:                                          A           FKM Viton

Additional Option 1:               M         Overvoltage protection

Additional Option 2:                 A          Not selected

>>Marking:                                  Z1         Tagging (TAG), see additional spec
