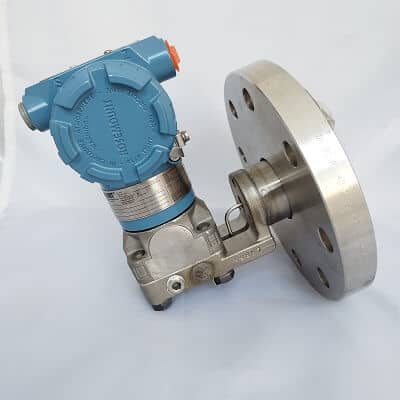

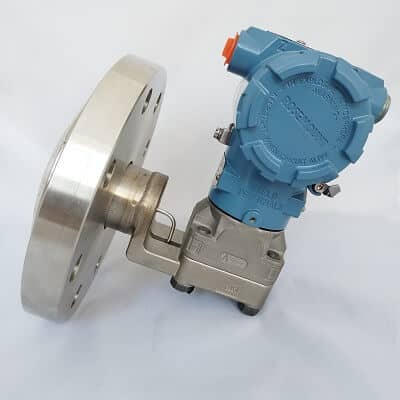

ترانسمیتر سطح روزمونت مدل 3051L دارای رنج فشارکارکرد 40 بار

A24PLM

وضعیت: نو با کارتن
موجودی: یک عدد
مشخصات:

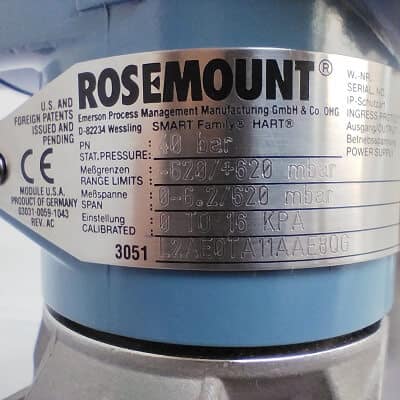

Model: 3051L Level transmitter
Pressure range: 2: –250 to 250 inH2O (–621.60 to 621.60 mbar)
Transmitter output: A: 4–20 mA with digital signal based on HART® Protocol .. HART Revision 5 is the default HART output.
Process connection size, material, extension length: E0: 3-in./DN 80
Mounting flange size, rating, material: T: DN 80- PN 40 per EN 1092-1- 316 SST
Seal fill fluid:A: SYLTHERM™ XLT-Temperature limits: –102 to 293 °F (–75 to 145 °C)
Low pressure side: 11: Configuration: Gage: Diaphragm material 316L SST
Sensor fluid: Silicone
O-ring: A: Glass-filled PTFE- Glass-filled PTFE: Aluminum
Conduit entry size: ½–14 NPT
Product certifications: E8: ATEX Flameproof and Dust Certification
Calibration certificate : QG : Calibration certificate and GOST verification certificate
