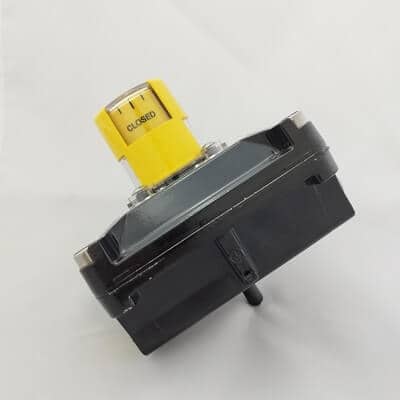

سوئیچ باکس آلومینیومی ضد انفجار برند WESTLOCK

SWITCH BOX   SENSOR CODE: NJ2-V3-N    EX BEACON  WESTLOCK

Aluminium explosionproof enclosure  EX BEACON  WESTLOCK

سوئیچ باکس آلومینیومی  ضد انفجار برند WESTLOCK

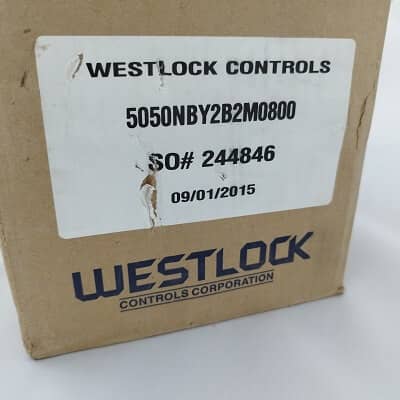

وضعیت: نو با کارتن

موجودی: 3

A70PLM

مشخصات:

Ex d Explosion Proof/Flameproof
ATEX/IEC

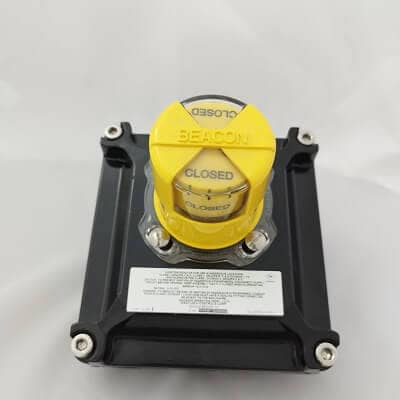

Local Beacon II™ visual indicator

SENSOR CODE: NJ2-V3-N

Aluminium enclosure with black powder coating finish

Available in rugged stainless steel

Flanged lid with 4-Fixing cover screws

Touchset™ cams for quick setting

Pre-wired and numbered terminal strips with generous working space
Max. 4 x multiple conduits for easy wiring with certified blanking plugs

Wide range of switches and sensors

Optional position feedback

NAMUR mounting to actuators

Switches: 1, 2, 3 or 4 x V3 SPDT mechanical switches.
1 or 2 x DPDT mechanical switches.
1, 2, 3 or 4 x Inductive proximity sensors.
1, 2, 3 or 4 x Magnum XT90 hermetically sealed.
Conduit Entry: 2, 3 or 4 x M20, M25, 3
⁄4” NPT.
Position Transmitters: RS, CS.
